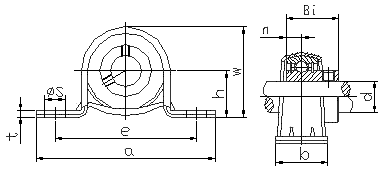

Chinese(GB)Chinese(Big5) HOME Introduction Product Feedback Contact us Home >> Product >> Pillow Blocks >> SBPP200  SBPFL200   Pillow Blocks   Plummer Blocks   Bearings   Adapter Sleeves   Withdrawal Sleeves   Attach Technical PRESSED HOUSING ROUND UNITS Bearing Unit NO. Shaft Dia d Dimensions(mm) Bolt Used Bearing No. Housing No. Housing Wt (Kg) (in) (mm) h a e b s t w n Bi (mm) (in) SBPP201-8 SBPP202-9 SBPP202-10 SBPP203-11 SBPP201 SBPP202 SBPP203 1/2 9/16 5/8 11/16 12 15 17 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB201-8 SB202-9 SB202-10 SB203-11 SB201 SB202 SB203 PP203 0.16 SBPP204-12 SBPP204 3/4 20 25.4 98 76 32 9.5 3.2 50 7 25 M8 5/16 SB204-12 SB204 PP204 0.21 SBPP205-13 SBPP205-14 SBPP205-15 SBPP205-16 SBPP205 13/16 7/8 15/16 1 25 28.6 108 86 32 11.5 4 56 7.5 27 M10 3/8 SB205-13 SB205-14 SB205-15 SB205-16 SB205 PP205 0.29 SBPP206-17 SBPP206-18 SBPP206-19 SBPP206-20 SBPP206 1-1/16 1-1/8 1-3/16 1-1/4 30 33.3 117 95 38 11.5 4 66 8 30 M10 3/8 SB206-17 SB206-18 SB206-19 SB206-20 SB206 PP206 0.45 SBPP207-20 SBPP207-21 SBPP207-22 SBPP207-23 SBPP207 1-1/4 1-5/16 1-3/8 1-7/16 35 39.7 129 106 42 11.5 4.6 78 8.5 32 M10 3/8 SB207-20 SB207-21 SB207-22 SB207-23 SB207 PP207 0.61 Bearing Unit NO. Shaft Dia d Dimensions(mm) Bolt Used Bearing No. Housing No. Housing Wt (kg) (in) (mm) a e l b t s n Bi (mm) (in) SBPFL201-8 SBPFL202-9 SBPFL202-10 SBPFL203-11 SBPFL201 SBPFL202 SBPFL203 1/2 9/16 5/8 11/16 12 15 17 81 63 14 59 2 7 6 22 M6 1/4 SB201-8 SB202-9 SB202-10 SB203-11 SB201 SB202 SB203 PFL203 0.19 SBPFL204-12 SBPFL204 3/4 20 90 71 16 67 2 9 7 25 M8 5/16 SB204-12 SB204 PFL204 0.24 SBPFL205-14 SBPFL205-15 SBPFL205-16 SBPFL205 7/8 15/16 1 25 95 76 18 71 2 9 7.5 27 M8 5/16 SB205-14 SB205-15 SB205-16 SB205 PFL205 0.28 SBPFL206-18 SBPFL206-19 SBPFL206-20 SBPFL206 1-1/8 1-3/16 1-1/4 30 113 90 18 84 2.6 11 8 30 M10 3/8 SB206-18 SB206-19 SB206-20 SB206 PFL206 0.38 SBPFL207-20 SBPFL207-21 SBPFL207-22 SBPFL207-23 SBPFL207 1-1/4 1-5/16 1-3/8 1-7/16 35 122 100 20 94 2.6 11 8.5 32 M10 3/8 SB207-20 SB207-21 SB207-22 SB207-23 SB207 PFL207 0.65 © 2003 - 2013 Jiangsu Longda Power Transmission Inc. All Rights Reserved. Supported by Made-in-China.com
